Setting the heating conditions is important for induction hardening, which is characterized by short-time heating using IH.
Creating a TTA diagram matched to the steel type makes it possible to obtain indices for optimal heating conditions.
- 拡大

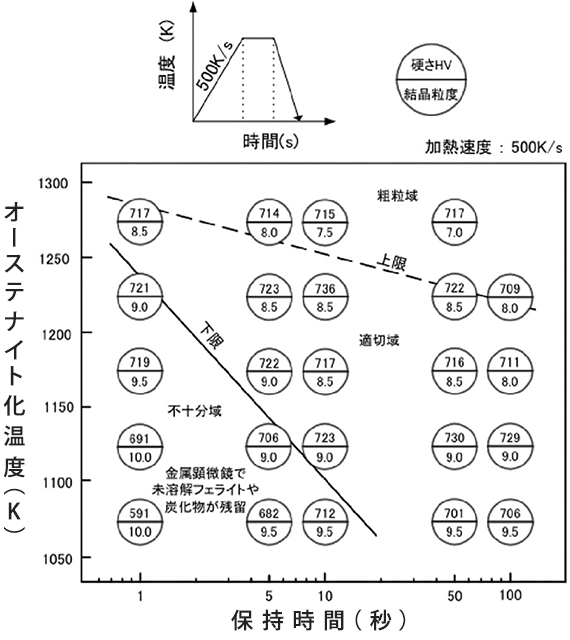

- TTA diagram example S45C material
The setting of cooling conditions is an important aspect of the quenching process.
Therefore, by creating a CCT diagram showing the relationship between the cooling rate and the generated structure, a guideline for appropriate cooling conditions can be obtained.
- 拡大

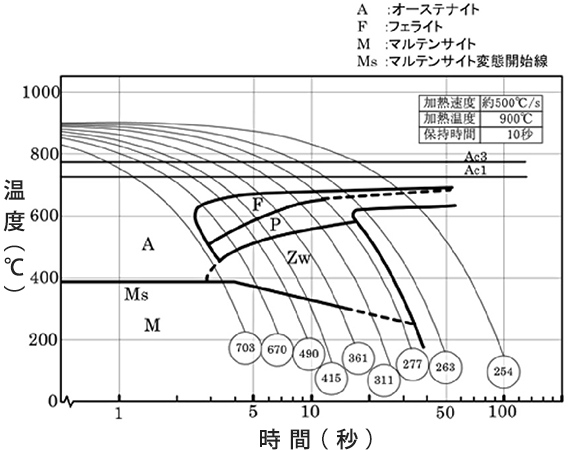

- CCT (Continuous Cooling Transformation) Diagram example - (S45C)
