Outline

The captain pile method is a method of semi-fixing the pile head for cast-in-place piles in which a precast concrete ring (PC ring) is placed over the pile head to connect the pile to the foundation.

Left: Pile bending moment distribution/Right: Captain pile method

Benefits

1. Easy installation, improved workability

Pile head delivery is simple and there is no pile anchorage rebar, making installation fast and easy.

2. Improved earthquake resistance of piles

The bending moment of the pile head can be reduced, and the damage to the pile material is less than with conventional construction methods, thus improving seismic resistance.

3. Can reduce the cost of foundation beams and piles

The reduction of the pile head moment allows for smaller foundation beams and pile cross-sections, which can significantly reduce the amount of concrete and reinforcing steel needed.
This is an environmentally friendly method that reduces the amount of soil exhausted.

4. Applicable to all cast-in-place concrete piles

Applicable to cast-in-place concrete piles (φ800~φ3,000), including steel pipe piles.
Need to negotiate for φ2,500 or more.

5. Open construction method

This method may be used by companies other than members of the Institute, as long as they obtain permission from the Institute.
The Institute will provide guidance on design and construction for use. (Pile diameters: φ800 to φ2,500)

Certification of the Captain Pile Construction Method and ULBON Spiral

Received an evaluation (BCJ-FD0230-01) from the Building Center of Japan in December 2005 and renewed (BCJ-FD0230-04) in December 2020. (Jointly developed by 10 companies, including Neturen)
ULBON spirals are used for shear reinforcement of pile heads.
Received an evaluation (BCJ Evaluation - FD0157-05) from the Building Center of Japan for "Construction method using ULBON as shear reinforcement for cast-in-place concrete piles."

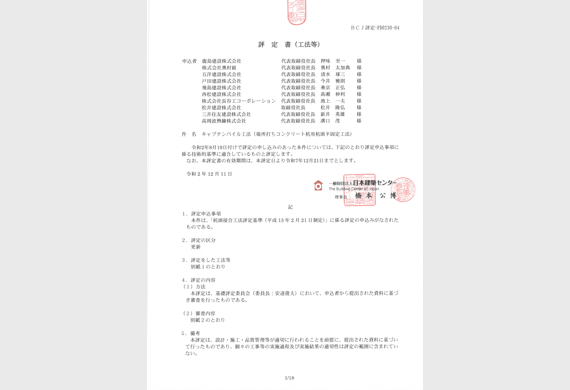

Captain Pile Method Evaluation Report
拡大
Captain Pile Method Evaluation Report

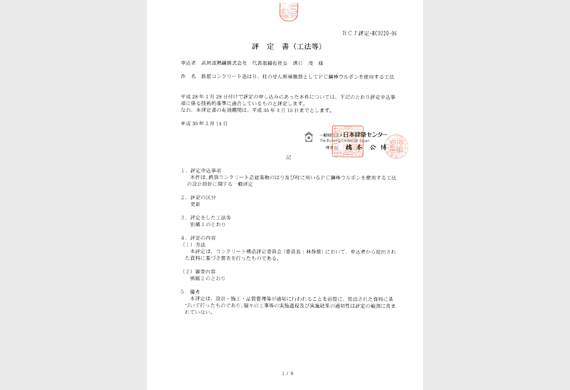

ULBON Evaluation Report
拡大
ULBON Evaluation Report

Captain Pile Method Construction Results

As of March 31, 2022, a cumulative total of 173 projects and 201 buildings have been constructed.
The number of applicable piles for the captain pile method is 5,636.

Captain pile method construction status

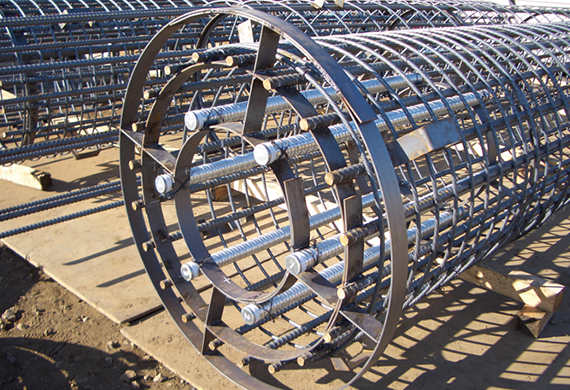

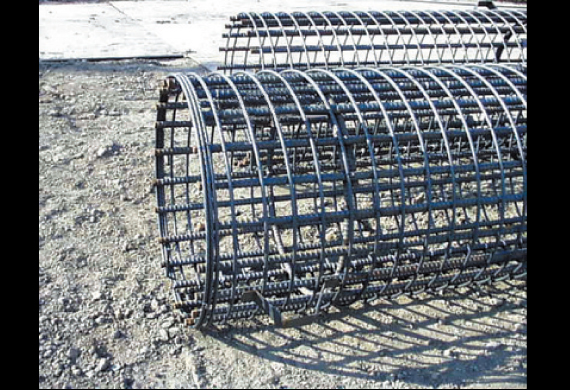

Rebar Cage (pile head)
拡大
Rebar Cage (pile head)

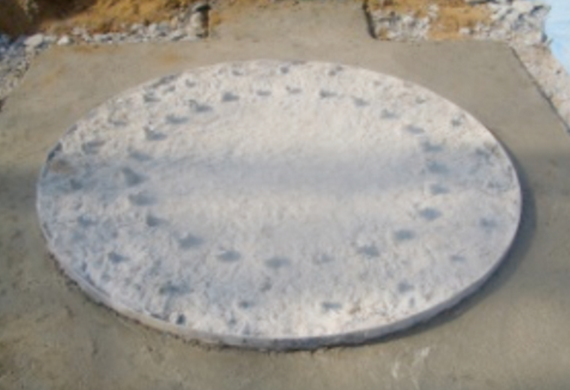

Pile-head Process
拡大
Pile-head Process

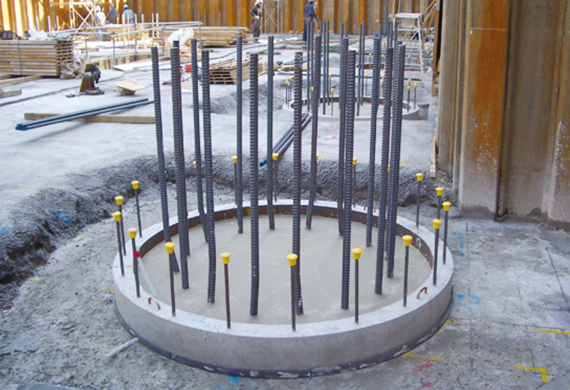

PC Ring and Tension Anchor Reinforcement Set
拡大
PC Ring and Tension Anchor Reinforcement Set

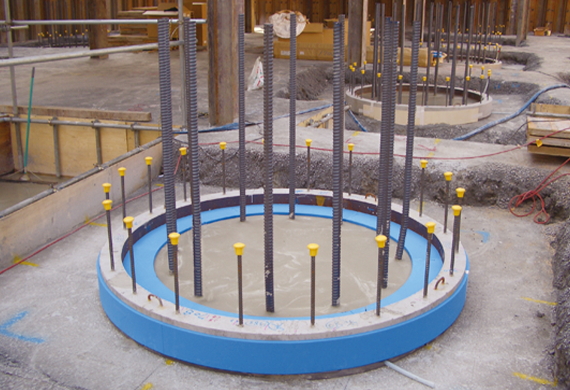

Finished Form (with aperture)
拡大
Finished Form (with aperture)
