Outline

ULBON ® is a thin deformed PC steel bar developed as the main reinforcement for PC piles and poles, and is deformed-drawn, induction hardened and tempered to give it the mechanical properties specified in JIS G 3137.
PC steel bar with excellent adhesion performance and linearity with concrete.

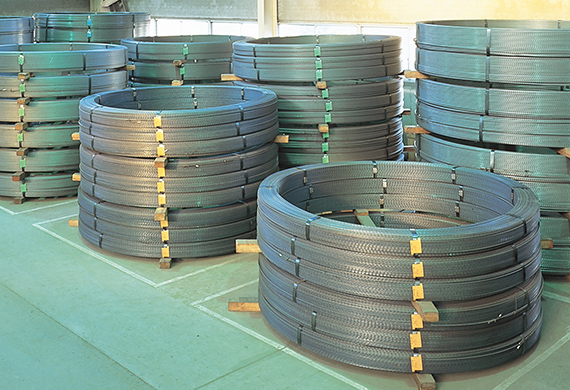

Shape of ULBON Coil material at delivery
拡大
Shape of ULBON Coil material at delivery

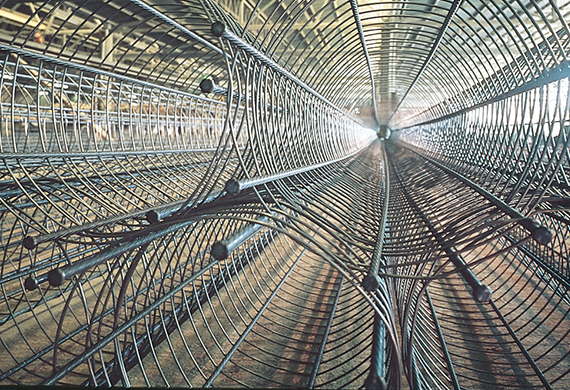

ULBON organized into baskets for piles
拡大
ULBON organized into baskets for piles

Benefits

- The six spiral groove shape provides high adhesion to concrete.
- The delivered shape is a "coil shape" with a weight of 1 or 2 tons. Excellent linearity even after rewinding.
- Cut at any length and can be supplied with the "heading" or "rolling" processing applied to the ends.
- We also manufacture and sell our own ULBON loader systems for cutting, heading, and rolling.

We also sell equipment for straightening, cutting, and double-end processing (heading and rolling).

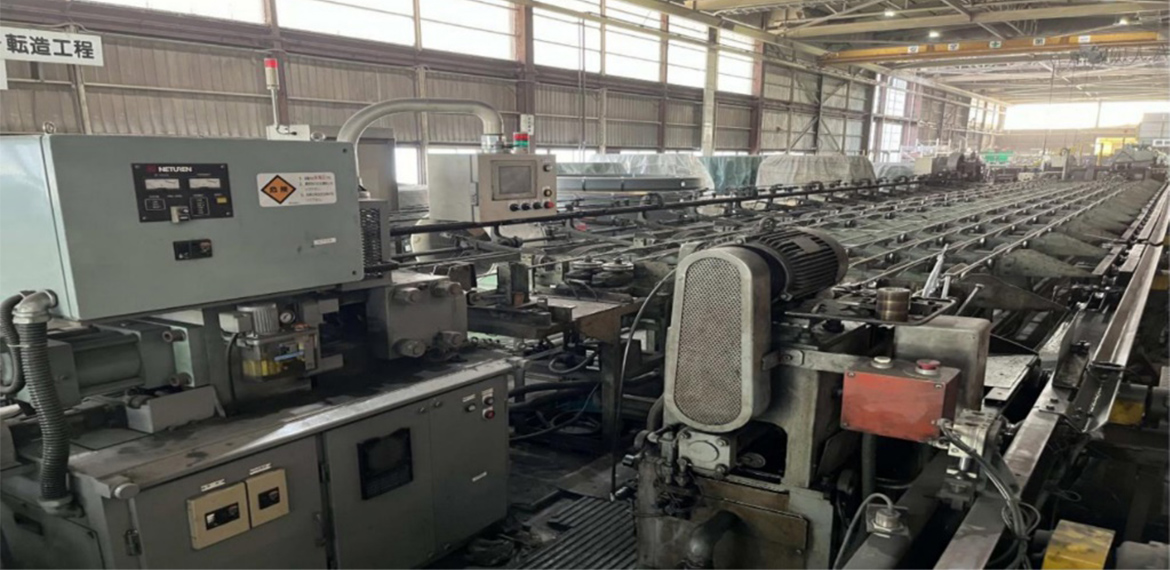

ULBON Loader System
拡大
ULBON Loader System

Mechanical properties of ULBON (JIS G 3137)

Production plant
